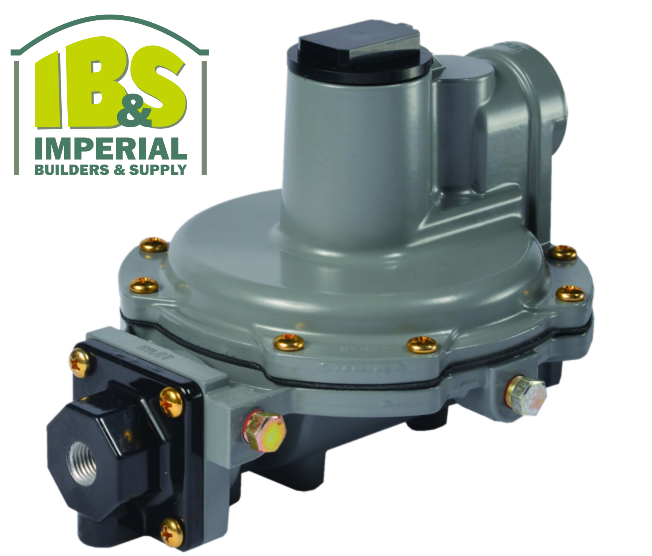

Second stage regulators reduce the pressure from a first-stage regulator, usually 10 psig (0,69 bar) to 11″ water column (27mbar), in domestic installations.
Vents are screened with standard orientation over the inlet, but other orientations are available
Painted palm green for easy identification
Capacity- 1,400,000
BTU/HR, 3/4″ FIPT in/out
Outlet range 9″- 13″ WC
Outlet setting- non-adjust
11″ WC
Equipped with stainless steel inlet screen to reduce the amount of debris entering the regulator
